Looking for a Reliable Home CCTV Installation in Barrackpore?
Home security has become a top priority for homeowners across Barrackpore and North 24 Parganas. With increasing concerns about theft, unauthorized entry, parcel theft, and the need to monitor elderly family members or children, installing a professionally designed CC Camera system is no longer considered a luxury—it's a necessity.
At Shield Vision, we believe every home deserves a security solution tailored to its unique layout and lifestyle. Recently, we completed a Home CCTV Installation in Barrackpore for a two-storey independent house. This project highlights how a properly planned cctv surveillance cameras eliminate blind spots, improve security, and provide complete peace of mind.
In this case study, we'll walk you through the homeowner's requirements, our site inspection process, the CCTV solution we recommended, the installation journey, and the final outcome. If you're planning to install a CCTV camera for home with mobile connectivity, this real-life example will help you understand what to expect from a professional CCTV installation service. You'll also see how the right camera placement, reliable remote viewing, and expert installation work together to provide complete home security and peace of mind.
Project Overview
- Project Type: Residential CCTV Installation
- Location: Barrackpore, North 24 Parganas
- Property: Two-storey independent house
- Installation Time: One working day
- System Installed:
- • 4 Full HD CCTV Cameras
- • 4-Channel DVR
- • 1TB Surveillance Hard Drive
- • Power Supply Unit
- • Weatherproof Cabling
- • Mobile Viewing Setup
- • Motion Detection Configuration
The Homeowner's Security Concerns
The homeowner approached us after hearing about several burglary attempts in nearby residential areas. While their own property had not experienced any incidents, they wanted to strengthen their home's security before a problem occurred. Their primary concerns included:
- • Monitoring the main entrance gate
- • Keeping an eye on the parking area
- • Covering the backyard
- • Monitoring the staircase entrance
- • Receiving clear night-time footage
- • Accessing live CCTV footage from a smartphone
- • Recording video for future playback
- • Installing a reliable system within a reasonable budget
- • Vulnerable entry points
- • Blind spots
- • Cable routing options
- • Lighting conditions
- • Internet connectivity
- • DVR placement
- • Power availability
- • Future maintenance accessibility
- • Front entrance gate
- • Covered parking
- • Side walkway
- • Backyard
- • Balcony
- • Staircase connecting both floors
- Camera 1 : Main entrance gate, Captures everyone entering or leaving the property.
- Camera 2 : Parking area, Monitors vehicle safety and driveway activity.
- Camera 3 : Side passage, Eliminates one of the biggest blind spots around the property.
- Camera 4 : Backyard, Provides complete rear coverage and records any movement behind the house.
- Don't Buy Cameras Without a Site Survey
- Camera Placement Matters More Than Camera Quantity
- Choose Surveillance Storage
- Think About Future Expansion
- Don't Ignore After-Sales Support
- • Correct camera positioning
- • Neat cable management
- • Secure mounting
- • Proper DVR configuration
- • Reliable mobile viewing setup
- • Better night vision optimization
- • Long-term technical support
- • Reduced maintenance issues
Like many first-time buyers, the customer initially believed that simply purchasing four cameras would solve every security issue. However, after our site inspection, it became clear that camera placement would be more important than camera quantity.
Why Every Home Needs a Site Inspection Before CCTV Installation
One of the biggest mistakes homeowners make is buying CCTV cameras online without understanding their property's security requirements. A professional site survey helps determine:
Site Inspection: What We Found
Our technician visited the property before preparing the quotation. The home consisted of two floors with:
During the inspection, we identified several security observations.
Front Gate
The entrance was well illuminated, making it ideal for capturing clear facial images.
Parking Area
The customer's vehicle remained parked inside the compound throughout the day. A dedicated camera was necessary to monitor vehicle movement.
Side Passage
This narrow pathway became extremely dark after sunset. Without infrared cameras, identification would have been nearly impossible during the night.
Backyard
Although rarely used, the backyard could become an unnoticed entry point. This area required continuous surveillance.
Router Location
Since the homeowner wanted mobile viewing, we also inspected broadband connectivity and planned the DVR location to ensure stable internet access.
Evidence Recording
High-definition recordings assist in investigations and insurance claims.
Choosing the Right CCTV System
Instead of recommending unnecessary premium equipment, we selected components based on the customer's actual requirements.
Four Full HD Cameras
These cameras provide excellent image clarity during both daytime and nighttime.
Four-Channel DVR
Enough recording channels for the current system while allowing efficient storage management.
1TB Surveillance Hard Disk
Designed specifically for continuous 24×7 video recording. Unlike standard computer hard drives, surveillance drives are built for constant operation.
Power Supply Unit
Provides stable power to all cameras.
High-Quality Cabling
Weather-resistant cables improve reliability and reduce maintenance issues.
Mobile Viewing Configuration
The homeowner can monitor live footage from anywhere using their smartphone.

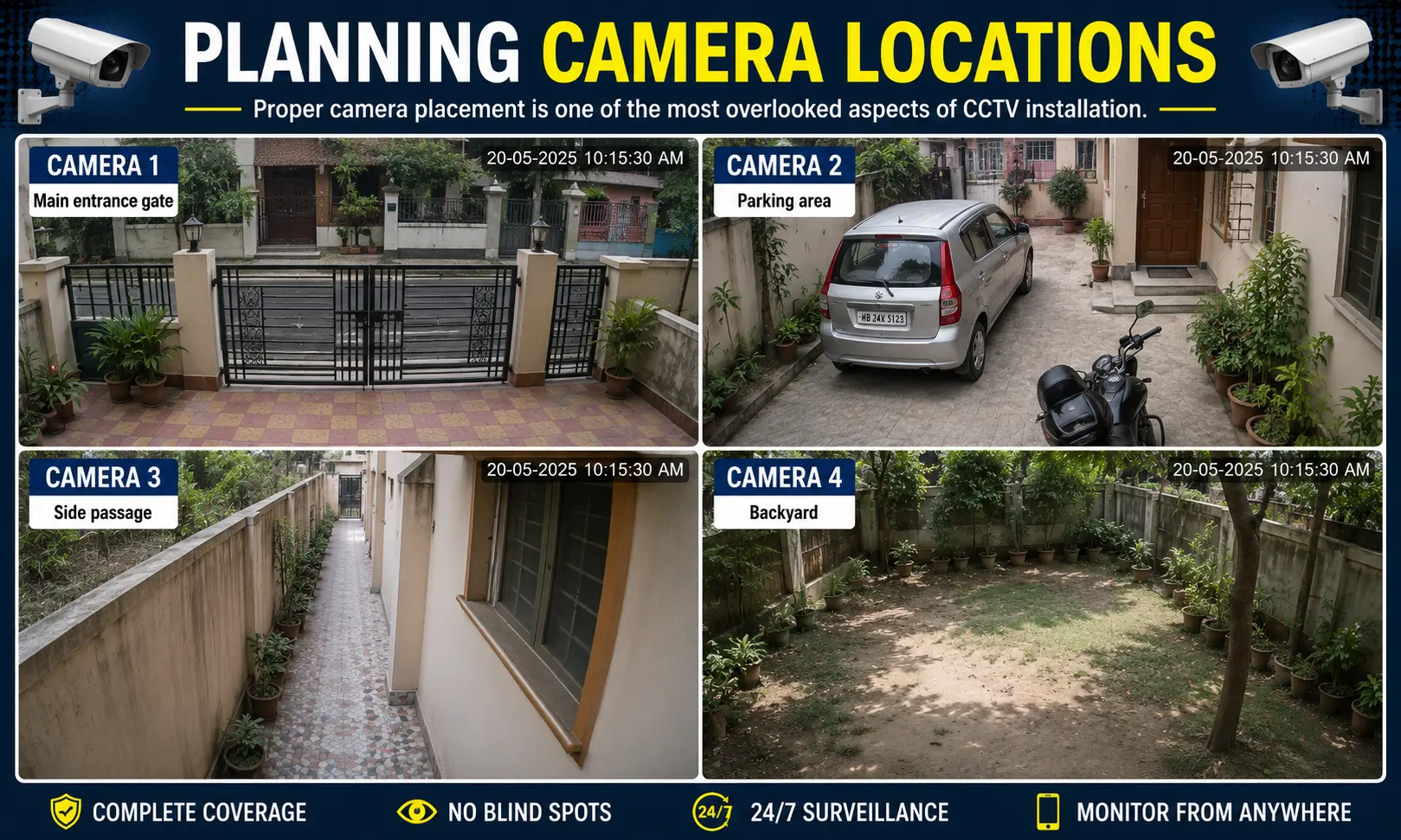

Planning Camera Locations
Proper camera placement is one of the most overlooked aspects of cctv surveillance camera installation. For this project, we positioned cameras to cover:
By strategically positioning cameras, we achieved complete surveillance without installing unnecessary additional cameras.
The Installation Process
Step 1: Camera Mounting
Each camera was securely mounted using weather-resistant fittings. Viewing angles were carefully adjusted to maximize coverage while avoiding unnecessary recording of neighboring properties.
Step 2: Cable Routing
Rather than leaving visible wires along walls, cables were routed through concealed paths wherever possible. Outdoor joints were sealed using waterproof connectors.
Step 3: DVR Installation
The DVR was installed inside the house where it remained secure, easily accessible, and protected from dust and moisture.
Step 4: Hard Disk Installation
The surveillance hard drive was installed and formatted for continuous recording. Recording schedules and overwrite settings were configured.
Step 5: Internet Configuration
The DVR was connected to the home's broadband connection. Remote viewing was enabled using the official mobile application.
Step 6: Smartphone Setup
The homeowner's mobile phone was configured for: • Live viewing • Playback • Motion notifications • Device health monitoring
Step 7: Testing
Every camera underwent: • Daytime testing • Night vision testing • Recording verification • Playback testing • Motion detection testing • Remote viewing verification
An Installation Challenge We Encountered
Every property presents unique challenges. In this project, one planned cable route passed through a reinforced concrete beam. Instead of exposing cables along the wall, our technicians identified an alternative concealed route through an existing service duct. Although this required additional effort, the final CCTV installation looked significantly cleaner and protected the wiring from future damage.
| Security Aspect | Before CCTV Installation | After Professional CCTV Installation |
|---|---|---|
| Main Entrance Monitoring | No visual monitoring of visitors or deliveries. | 24×7 HD surveillance with clear facial identification. |
| Vehicle Safety | Vehicle remained unmonitored inside the premises. | Dedicated camera continuously monitors the parking area. |
| Blind Spots | Side passage and backyard were not covered. | Complete surveillance with no major blind spots. |
| Night-Time Visibility | Poor visibility after sunset. | Infrared night vision captures clear footage. |
| Remote Monitoring | No access while away from home. | Live viewing and playback from anywhere using a smartphone. |
| Incident Investigation | No evidence available if an incident occurred. | Recorded footage available for playback and investigation. |
| Family Peace of Mind | Frequent concern when the house was unattended. | Greater confidence with 24×7 surveillance. |
| Visitor Verification | Unable to verify visitors after they left. | Visitors can be identified using recorded footage. |
| Overall Home Security | Limited security with no visual records. | Complete home surveillance and evidence recording. |
What the Homeowner Said
"The installation was neat, professional, and completed exactly as promised. The team explained everything clearly and helped us set up mobile viewing. Now we can check our home anytime, even when we're away."
Customer education is just as important as installation. We always ensure homeowners understand how to: • View live footage • Search recordings • Export important clips • Use motion alerts • Maintain their CCTV system
Lessons Every Homeowner Can Learn
This project reinforced several important points.
Professional installation should include guidance, troubleshooting assistance, and maintenance options.
| Feature | Before | After |
|---|---|---|
| Cameras Installed | None | 4 Full HD Cameras |
| Recording | Not Available | 24×7 Continuous Recording |
| Mobile Viewing | ✖ No | ✔ Yes |
| Motion Detection | ✖ No | ✔ Enabled |
| Night Vision | ✖ No | ✔ Infrared Night Vision |
| Storage | None | 1TB Surveillance Hard Drive |
| Blind Spots | Multiple | Eliminated |
| Cable Management | Not Applicable | Professional Concealed Cabling |
| Playback Access | Not Available | Instant Playback via DVR & Mobile App |
| Overall Security Level | Basic | Highly Enhanced |
Why Professional CCTV Installation Is Worth It
Although DIY CCTV kits are widely available online, professional installation offers several advantages:
Why Customers Trust Shield Vision
Professional Installation
Experienced technicians ensuring neat installation and optimal camera placement.
Premium Brands
We install Hikvision and CP Plus CCTV systems known for reliability and performance.
After Sales Support
AMC, repairs, warranty assistance and remote technical support.
Transparent Pricing
No hidden charges. Every quotation is based on your actual security requirements.
Need Professional CCTV Installation?
Whether you need CCTV installation for your home, office, apartment, shop or warehouse, our experts are ready to help.
Frequently Asked Questions
How many CCTV cameras are enough for a home?
Most apartments require 2–4 cameras, while independent houses typically need 4–8 cameras depending on their size and layout.
Can I view my CCTV cameras on my phone?
Can I view my CCTV cameras on my phone?.
How long does CCTV installation take?
Most residential installations are completed within a single day. Larger homes or properties requiring extensive cabling may take longer.
How long can CCTV footage be stored?
Storage depends on the hard drive capacity, recording quality, and number of cameras. A 1TB surveillance hard drive commonly stores several weeks of footage under typical home usage.
Do CCTV cameras work at night?
Yes. Most modern cameras include infrared night vision, allowing clear recording even in complete darkness.
Which areas do you serve?
We serve Kolkata, Barrackpore, Baranagar, Belgharia, Sodepur, Khardah, Barasat, Kalyani, Agarpara and many other locations across North and South 24 Parganas.
What is the cost of 4 Camera CCTV Price in Kolkata?
The 4 Camera CCTV Package is one of the most popular choices for residential properties, retail shops, clinics, and small offices in Kolkata and the cost starts from Rs 18500.
Secure Your Home with Professional CCTV Installation
Your home is one of your most valuable investments, and protecting it starts with the right security system. As this Barrackpore case study shows, an effective CCTV installation is about much more than mounting cameras—it requires careful planning, proper equipment, expert installation, and ongoing support. If you're looking for Home CCTV Installation in Barrackpore, North 24 Parganas, or nearby areas, Shield Vision is ready to help. Contact us today to schedule a site inspection and receive a customised CCTV solution designed specifically for your home, your budget, and your peace of mind.
